Boldever's white stainless-steel plate screws to a wall or ceiling, grips the HY300's base on an anti-slip pad and arrives with nails and wall anchors, so a bedroom cinema goes up in about ten minutes.
Most bedroom ceilings are white, and most projector mounts are black. Boldever's plate is white stainless steel, so once it is up, the eye skips over it and lands on the HY300 instead. On a pale wall above a headboard it reads as part of the room, not a gadget bolted on.
Under the paintwork, the plate is built to stay put:
The plate holds the projector by its round base, so the HY300's own swivel stays free. Fix the plate to the wall and the lens tips from the far wall up to the ceiling with the stand's normal 180° movement. Fix it to the ceiling and the projector hangs head-down, throwing across the room.
A rating of 1.2 kg (2.65 lb) gives an HY300 plenty of headroom. Magcubic's Pro+ weighs 0.88 lb, so even with an HDMI stick plugged in the plate carries well under half its limit.
| Spec | Value |
|---|---|
| Brand | Boldever |
| Type | Screw-in wall and ceiling bracket |
| Material | Stainless steel |
| Colour | White |
| Shape | Rectangular plate |
| Dimensions | 4.72 × 4.72 × 0.35 in (12 × 12 × 0.9 cm) |
| Maximum load | 1,200 g (2.65 lb) |
| Projector base thickness | 0.24–0.35 in (0.6–0.9 cm) |
| Projector base diameter | Under 4.7 in (12 cm) |
| Grip | Anti-slip padding against vibration and sliding |
| Fixings included | Iron nails 1.57 in long; plastic expansion anchors 1.5 in |
| Anchor use | Solid concrete and brick only; nails for wood |
| Installation time | About 10 minutes |
| Compatible | HY300, HY300 Pro and most barrel-style mini projectors |
| Named brands | CLOKOWE, Thunrlge, Magcubic, Gaimoo, Sainyer, Tecaki, KEPEAK, ENUOSUMA, XuanPad, Alwtniet and others |
| Water resistance | Not water resistant, indoor use |
Boldever designs the plate around the barrel-shaped mini projector, and it states three numbers every projector must meet. Check them with a ruler before ordering. Two minutes with a tape measure beats an evening of returns.
| Limit | Imperial | Metric |
|---|---|---|
| Base thickness | 0.24–0.35 in | 0.6–0.9 cm |
| Base diameter | Under 4.7 in | Under 12 cm |
| Projector weight | Up to 2.65 lb | Up to 1.2 kg |
The thickness figure matters most. The plate is made to hold the rim of the round foot under the swivel stand, so a foot thinner than 0.6 cm will sit loosely and one thicker than 0.9 cm will not slide in. Measure the edge of the foot, not the full height of the projector.
Inside those limits, the list of named projectors is long:
Other shapes are a different story. The ball-shaped HY300F football edition does not sit on a flat round foot, and projectors with a large speaker base may exceed the 12 cm diameter. Those owners will do better with a tripod or a 1/4-inch ball-head mount.
How the HY300 generations compare is set out in the HY300 specs guide.
Boldever puts the job at about ten minutes with no specialist tools. The one decision that matters is which fixing goes into which wall. Its own warning is clear: the plastic anchors are for solid concrete and brick only.
Match the fixing to the surface:
A calm order of work:
Plan the power before the first hole. Magcubic's adapters end in a cord of about a metre, which rarely reaches from the ceiling to a socket; budget for an extension lead clipped along the edge of the room. Keep the projector's vents clear of the ceiling so the fan can push warm air away.
The HY300 manual guide shows where the flip setting lives.

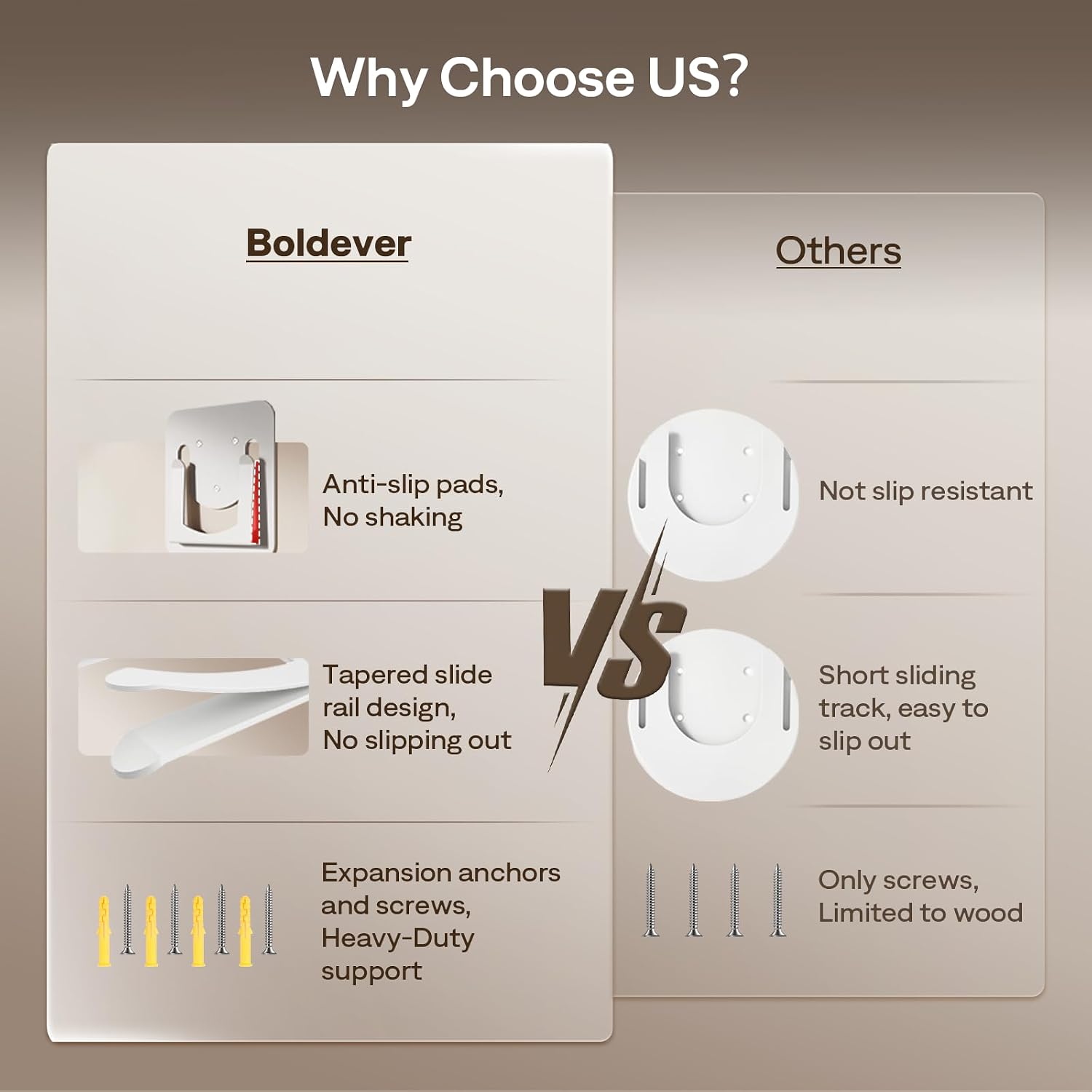

Two HY300 mounts look almost like twins. Boldever and Tellegloww both make a white plate of the same footprint, with the same base limits and the same 1.2 kg rating. The differences are in the metal, the thickness and the pad.
| Mount | Material | Size | Grip and fixings |
|---|---|---|---|
| Boldever | Stainless steel | 4.72 × 4.72 × 0.35 in | Anti-slip pad; nails and anchors |
| Tellegloww | Iron and plastic | 4.72 × 4.72 × 0.47 in | Three screw holes; nails and anchors |
| Tjweiqing | Laser-cut iron, round | Round plate | Screws bought separately |
| Chanvoo | Aluminium alloy | Rectangular | 3M VHB tape or M4 × 25 screws |
| Moxweyeni | Powder-coated steel | About 4 × 4 in | EVA pad; expansion screws |
Boldever's anti-slip pad and slimmer profile give it the edge for a clean ceiling. Tellegloww suits someone who wants the same limits in a slightly deeper plate. Chanvoo is the rental-flat choice, since its tape needs no holes, though it wants 24 hours before the projector goes on.
Tjweiqing's round iron plate is the alternative for anyone who likes a circle on the wall, though its screws come from your own toolbox. Moxweyeni's black steel plate suits a dark feature wall, where white would stand out. For a white bedroom ceiling and a projector that stays put for years, Boldever is the quiet, complete kit.
Run through these points before ordering:
The other stands, mounts and cases are gathered in the HY300 accessories guide.
The HY300, HY300 Pro and most barrel-style mini projectors whose base is 0.6–0.9 cm thick, under 12 cm across and under 1.2 kg.
The included plastic anchors are for concrete and brick, and the nails are for wood. On plasterboard, fix into a stud or use cavity anchors.
Yes, it fixes to a wall or a ceiling. On a ceiling the projector hangs upside down, so switch on the flip or ceiling mode.
About ten minutes with a drill. The fixings and instructions are in the box.
